Rockchip SDC-RK3288 Android Or Linux Ubuntu Development board Customized Solution

All features are customizable

  • With Wireless Module and 3.5mm Audio Port
  • High performance Quad-core ARM SoC up to 1. 8GHz with 2GB RAM- The SDC-RK3288 features the Rockchip RK3288 SoC and Mali-T764 GPU along with 2GB of Dual Channel DDR3 memory and 16GB of fast & durable eMMC onboard storage
  • DIY Design – SDC-RK3288 features multiple DIY use features including a enhanced GPIO header with dual mode I2S, silkscreened PCB, onboard power on pin
  • Highly compatible PCB & Topology –Leveraging industry standard PCB & topology dimensions along with IO and connection placement, SDC-RK3288 offer extensive compatibility with SBC accessories & chassis.
  • HD & UHD video support –SDC-RK3288 supports accelerated HD & UHD ( 4K ) video playback and supports HDMI CEC for seamless power on & off configurations

PRODUCT DETAIL

1.1. Introduction

 BETTERSIGNAL RK3288 V5.32 Android integrated board, is based on Rockchip micro RK3288 Cortex-A17 quad-core chip solution, frequency up to 1.6GHz,it has excellent image processing and computing performance,able to meet a variety of requirements,such as human-machine interaction, game play, video play, industrial control etc; the board has multiple interfaces and I / O, which is capable of be connected to various external devices.

1.2. Characteristics

High performance: The 1.6GHz main frequency can process a variety of tasks quickly, and the

ali-T764 GPU enhances support for different APIs, including OpenCL 1.1, DirectX 11.1, and Renderscript.

Multiple interface: It has USB port/ serial port/ I2C/SPI/ ADC/GPIO, suitable for common devices on the market.such as card swiping equipment, printing equipment and so on.

Excellent performance: Support horizontal and vertical screen play, dual-screen same display,

ual-screen different display, remote control,VGA/HMDI etc.

System customization: support Android system optimization customization, provide system interface API code.

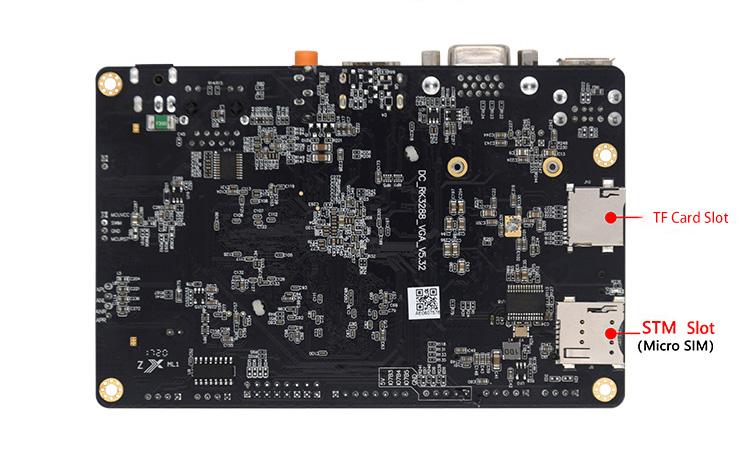

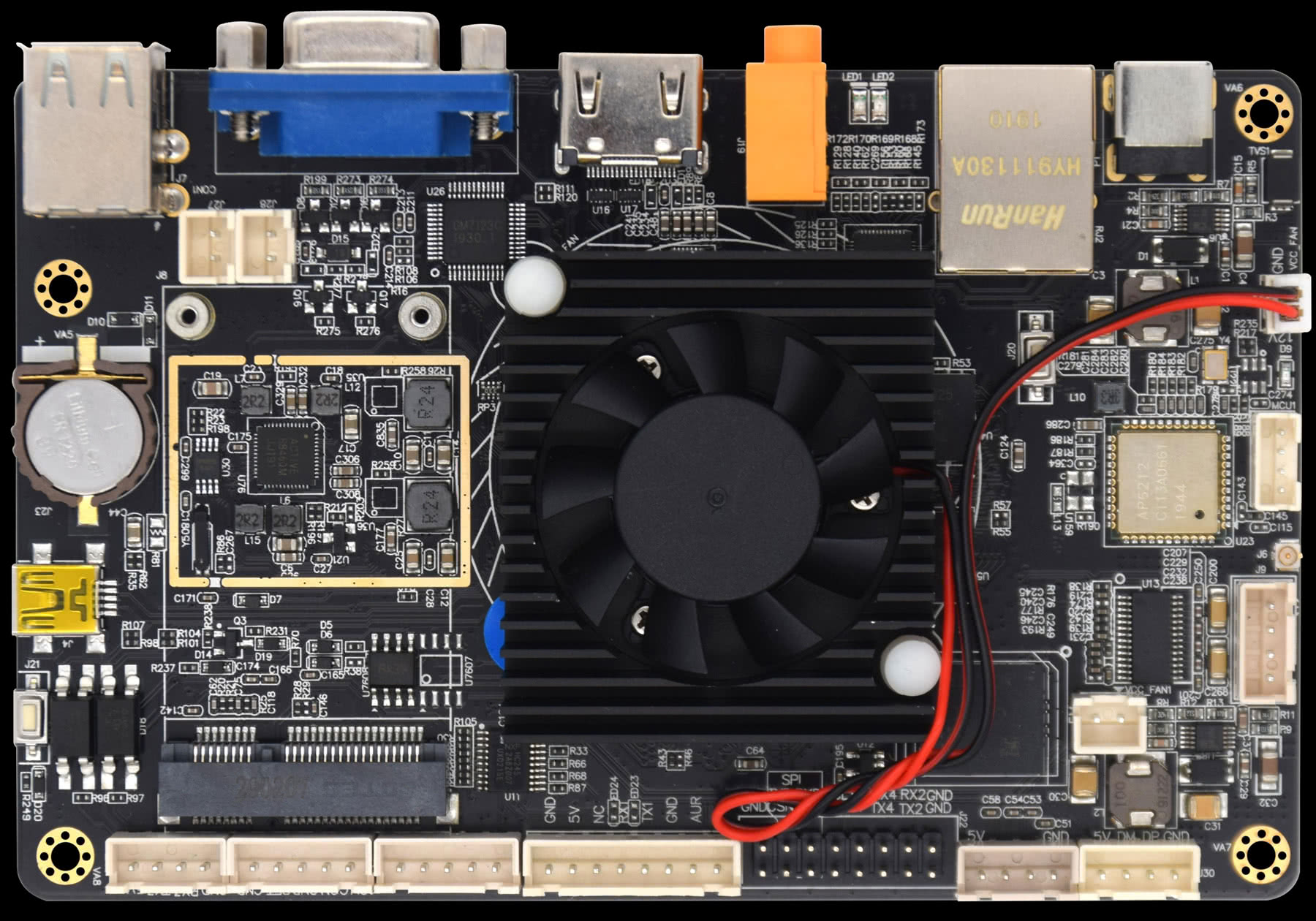

 2.Appearance and Port Description

3.List of Basic Functions‌

Core Components

CPU

The RK3288 quad-core 32-bit ARM Coretex-A17 kernel architecture, with a 28nm

process design, runs with a main frequency of 1.6GHz

GPU

Mali-T764 GPU, supports AFBC (frame buffer compression), OpenGL ES 1.1/2.0/3.1,

OpenCL, DirectX9.3, and embedded high-performance 2D acceleration hardware

RAMA

1GB/2GB(Default)/4GB

Flash memory

eMMC 8G(Default)/16/32G/64G(optional)

Memory expansion

Up to 128GB of TF card extensions are supported

Display Interface

HDMI OUT

HDMI2.0 supports a maximum of 3840×2160 output

VGA OUT

VGA video interface, up to 1920×1080@60fps

Audio Interface

MIC interface

1-channel microphone input interface

Amplifier

Left and right dual-channel output, support 8 Ω 10W dual speakers

Network Support

Ethernet

1-Standard RJ45 interface, 10/100/1000M Adaptive Ethernet

Wifi/Bluetooth

On-board WIFI / BT module, with WiFi 2.4GHz / 5GHz (5GHz option), 802.11a/b/g/n/ac

protocol, and Bluetooth 4.0 (BLE support)

Mobile Network

One built-in MINI PCI_E seat slot to expand the connection to the 3G / 4G module

Basic Interface

USB2.0

4-USB Host interfaces(1*USB socket,1*2.54mm-4P,1*2.54mm-2P) for external

high-definition USB camera, U disk, keyboard and mouse and other devices

USB OTG

Used to debug the system, update the firmware, can also be used in Host mode

Serial port

5-serial ports , including 4*TTL and 1*multiplexed RS232 serial ports

GPIO interface

Provides 5 IO ports for free definition of input and output status

RTC

Support for real-time clock, 1220 button battery power supply

SPI interface

Support standard SPI interface

IIC interface

Support standard I2C interface

Other

Operating system

Android 5.1/Android 7.1/Android 11/debian/ubuntu18.04/buildroot

Power socket

1* DC 12V Input(DC-5.5*2.5MM)

Adaptive

12V 2-5A

System Update

Support PC/U disk/TF card

Working Environment

working

temperature

0℃~70℃,recommended 5℃~35℃

working humidity

10%~90%,no condensation

Storage

Temperature

-30℃~75℃,recommended storage at room temperature
